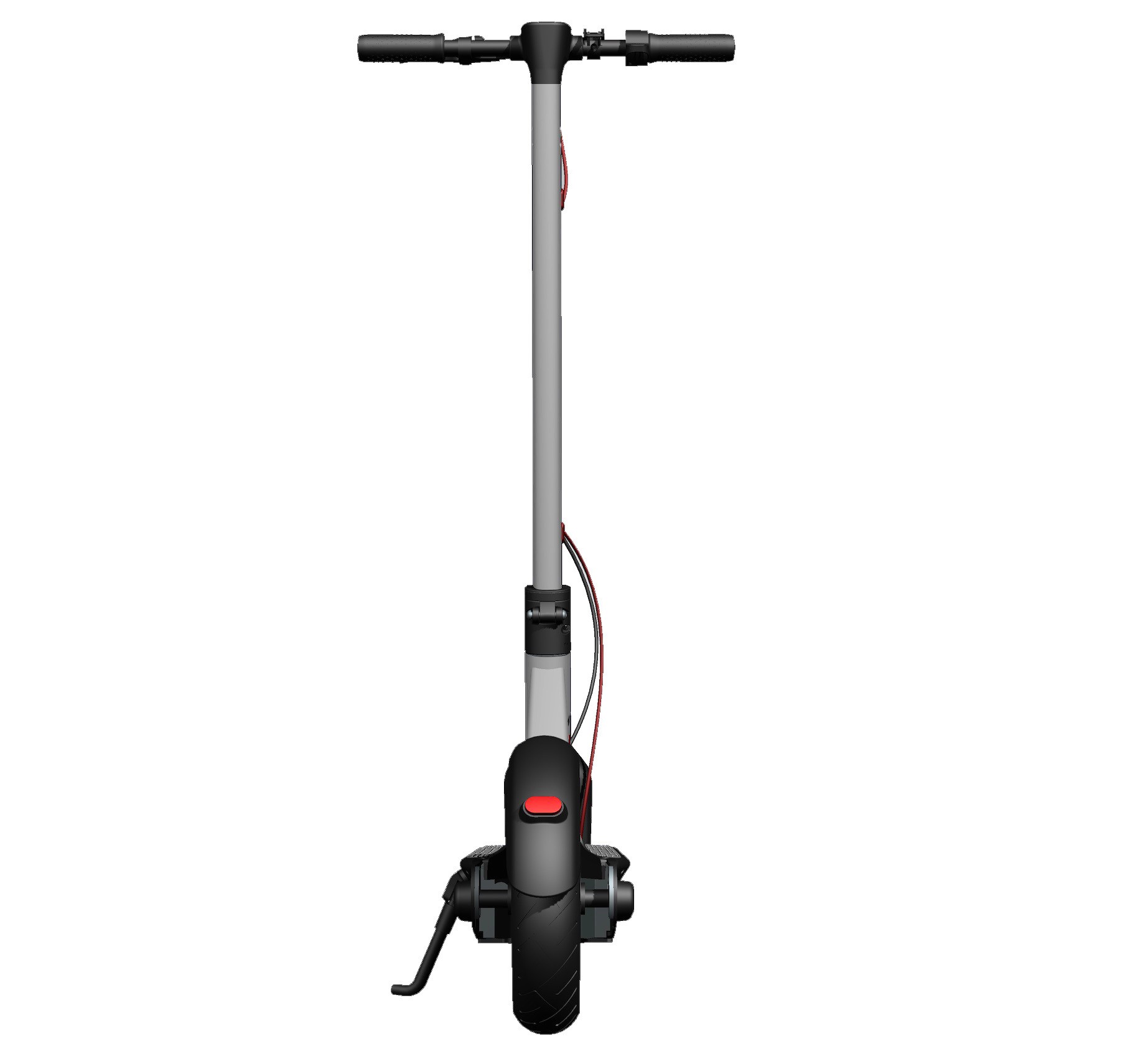

10-inch Foldable Electric Scooter FS13A — view 1

PRODUCT GALLERY / 01

Electric Scooters

MODEL / FS13A

10-inch Foldable Electric Scooter

A larger-wheel commuter platform balancing range, stability and folding convenience.

FoldableYes

Tire size10 inch

Folded size1167 × 423 × 534 mm

Extended size1167 × 423 × 1203 mm

Request configuration →Back to all products

REFERENCE CONFIGURATION

Detailed
information.

Specifications reflect the reference platform and can be adapted for target-market requirements, compliance and commercial positioning.

Foldable: Yes
Tire size: 10 inch
Folded size: 1167 × 423 × 534 mm
Extended size: 1167 × 423 × 1203 mm
Controller: Brushless controller
Motor power: 350W
Brake system: Electronic brake and hub brake
Minimum load: 30 kg
Maximum load: 100 kg
Maximum speed: 30 km/h
Maximum slope: 20%
Tyre type: Pneumatic tyre
Headlamp: Yes
Brake light: LED rear light
Smartphone app: Optional
Battery capacity: 36V 10–15Ah
Range per charge: 35–50 km
Charger voltage: 110–240V, 50–60Hz
Working temperature: −10°C to 40°C
Charging time: 6 hours
