14-inch Foldable Electric Bike EB03 — view 1

PRODUCT GALLERY / 01

Electric Bikes

MODEL / EB03

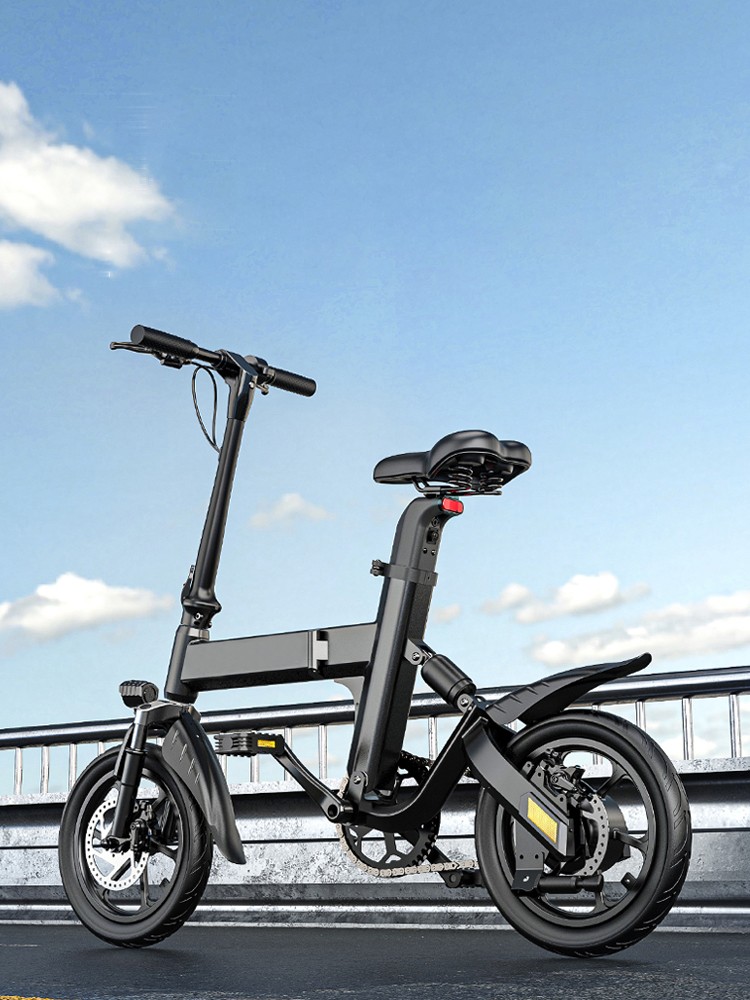

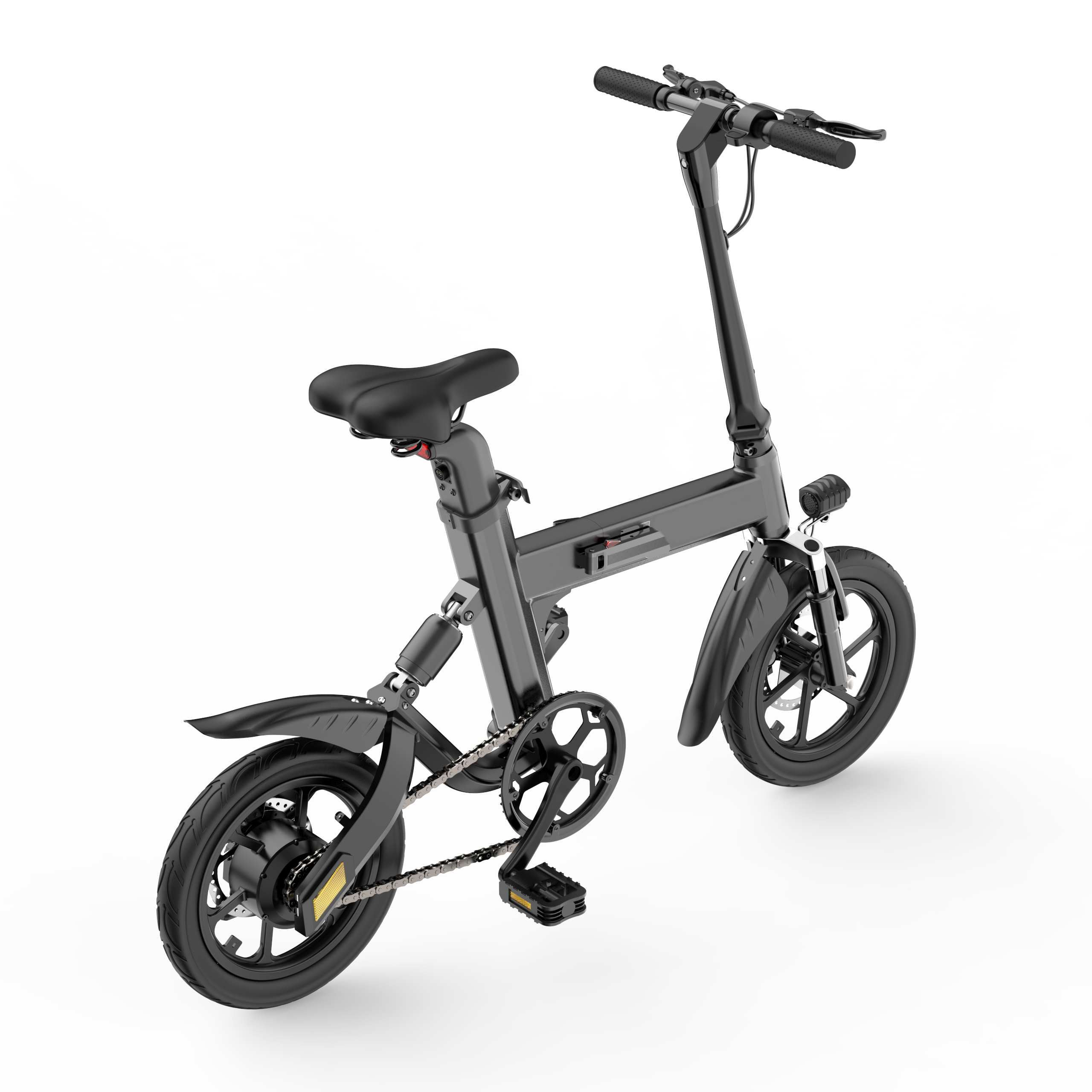

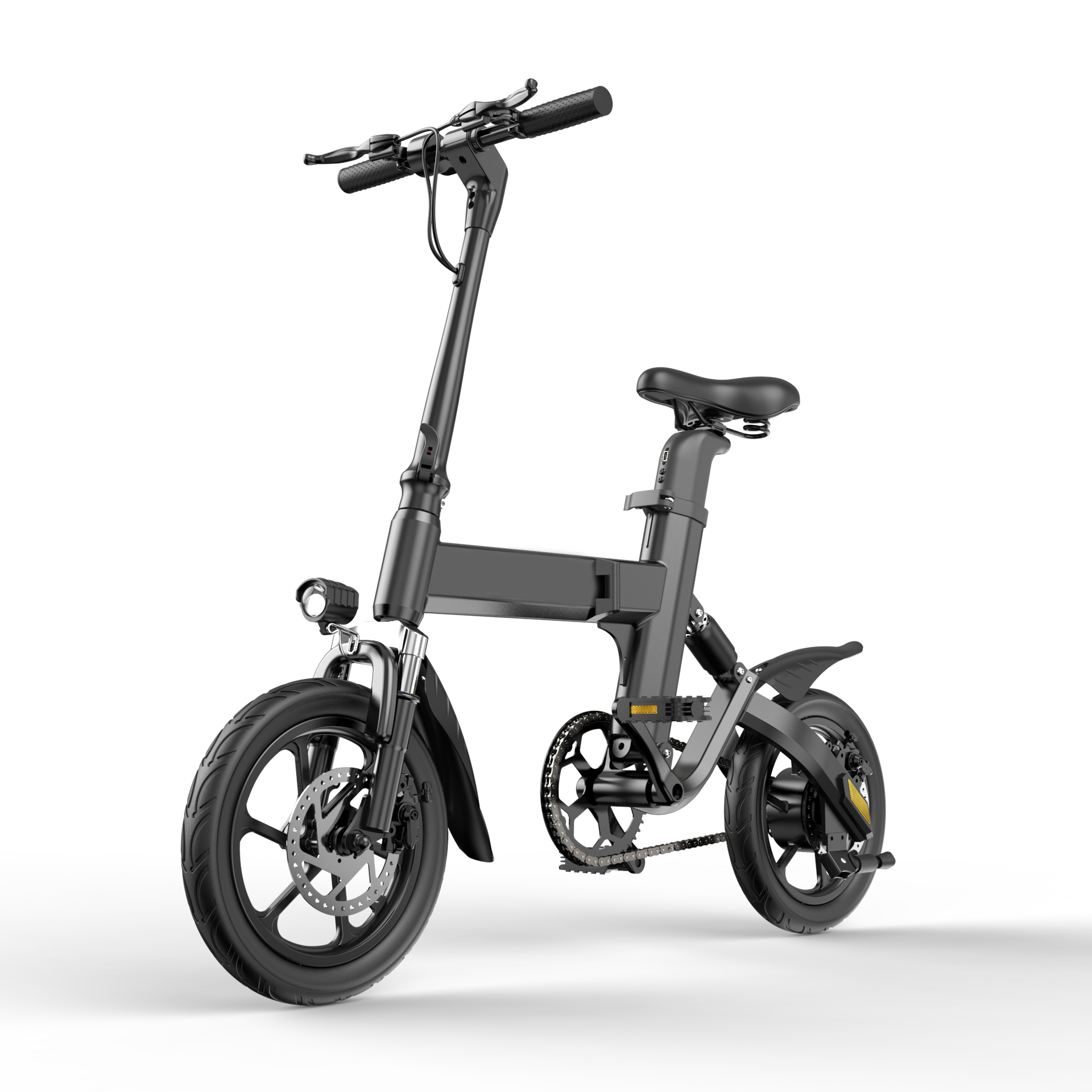

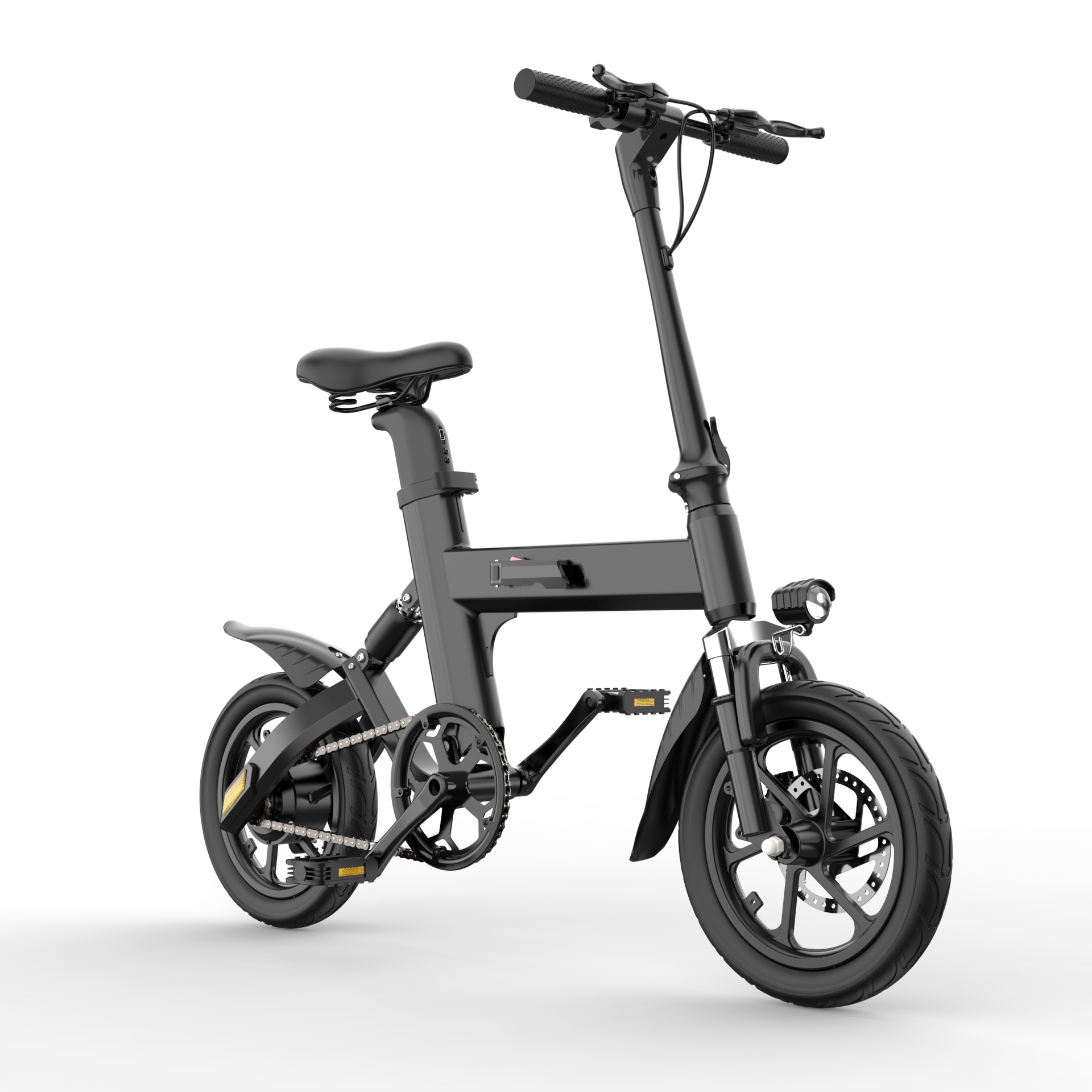

14-inch Foldable Electric Bike

A compact aluminum folding platform designed for portable urban mobility programs.

Frame materialAluminum

Folded size76 × 52 × 73 cm

Extended size128 × 50 × 105 cm

Tyres14-inch front and rear wheels with rear hub motor

Request configuration →Back to all products

REFERENCE CONFIGURATION

Detailed
information.

Specifications reflect the reference platform and can be adapted for target-market requirements, compliance and commercial positioning.

Frame material: Aluminum
Folded size: 76 × 52 × 73 cm
Extended size: 128 × 50 × 105 cm

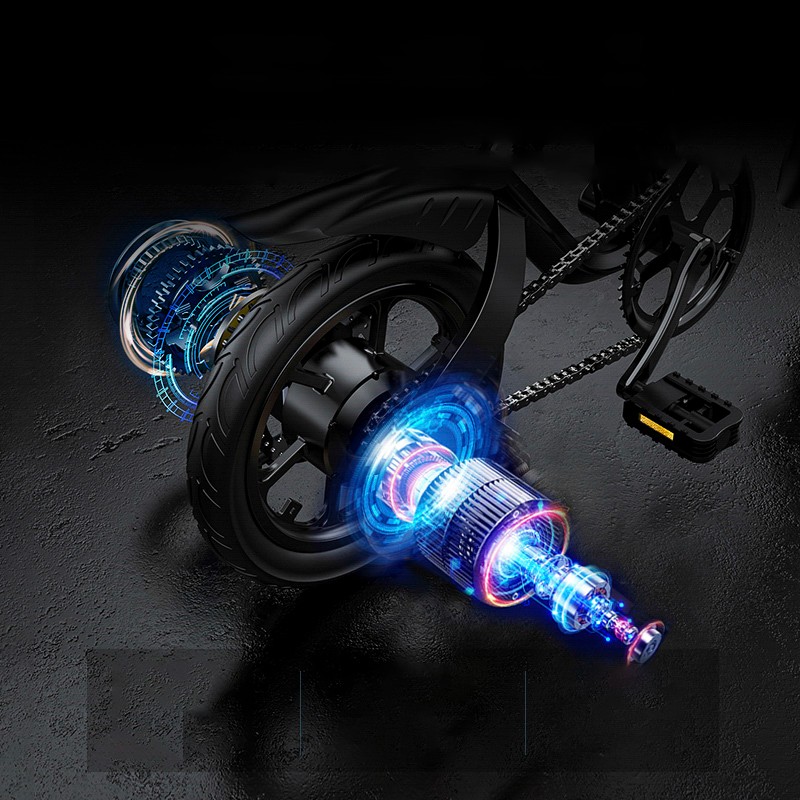

Tyres: 14-inch front and rear wheels with rear hub motor
Motor power: 350W
Brake system: Rear disc brake
Minimum load: 25 kg
Maximum load: 120 kg
Maximum speed: 40 km/h
Tyre type: Pneumatic tyre
Headlamp: Yes
LED tail lamp: Yes

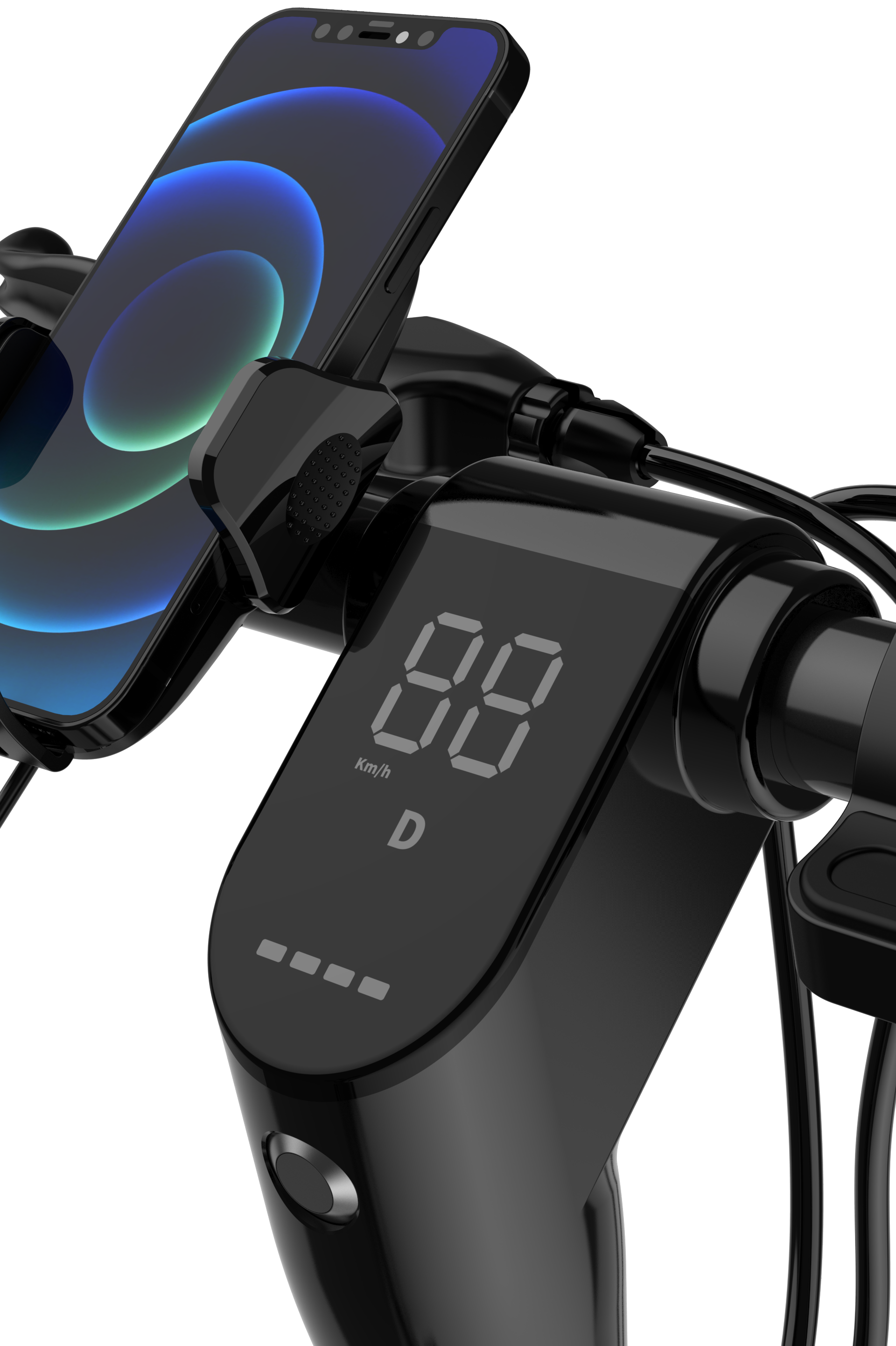

Smartphone app: Optional
Battery capacity: 6–12Ah
Range per charge: 25–50 km
Charger voltage: 110–240V, 50–60Hz
Charging time: 3–6 hours
Working temperature: −10°C to 40°C
Net weight: 19 kg
