20-inch Fat-tire Electric Bike EB28 — view 1

PRODUCT GALLERY / 01

Electric Bikes

MODEL / EB28

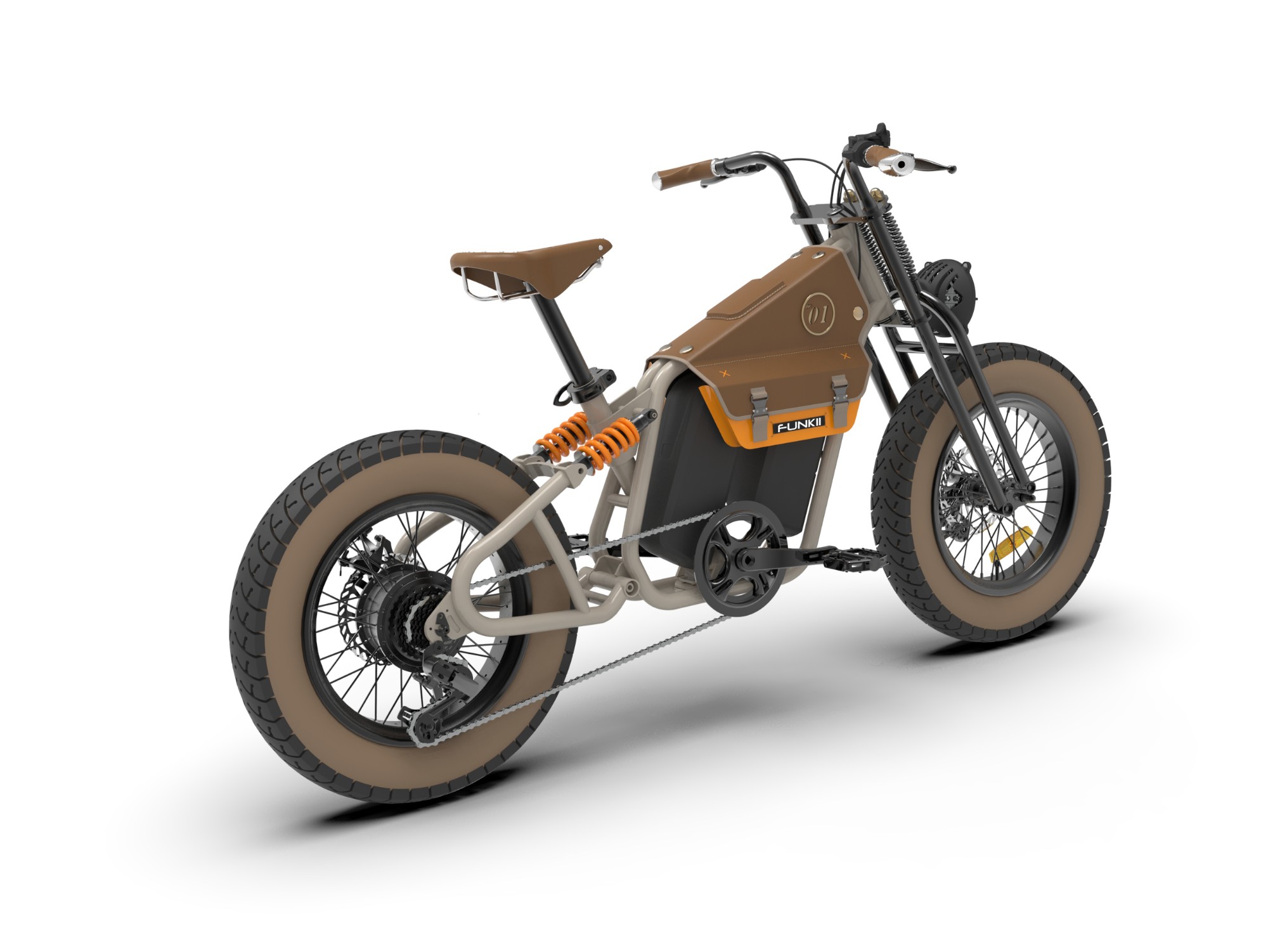

20-inch Fat-tire Electric Bike

A high-presence fat-tire platform for all-road positioning and premium retail channels.

Frame materialSteel

Extended size1864 × 683 × 991 mm

Tyres20-inch front and rear wheels with rear hub motor

Motor power750W

Request configuration →Back to all products

REFERENCE CONFIGURATION

Detailed
information.

Specifications reflect the reference platform and can be adapted for target-market requirements, compliance and commercial positioning.

Frame material: Steel
Extended size: 1864 × 683 × 991 mm
Tyres: 20-inch front and rear wheels with rear hub motor
Motor power: 750W
Brake system: Front and rear disc brakes
Maximum load: 150 kg
Maximum speed: 45 km/h
Gears: Shimano 7-speed
Tyre type: Pneumatic tyre
Headlamp: Yes
LED tail lamp: Yes
Battery capacity: 48V 15Ah
Range per charge: 45–50 km
Charger voltage: 110–240V, 50–60Hz
Working temperature: −10°C to 40°C
Charging time: 7.5–8 hours
Net weight: 40 kg
