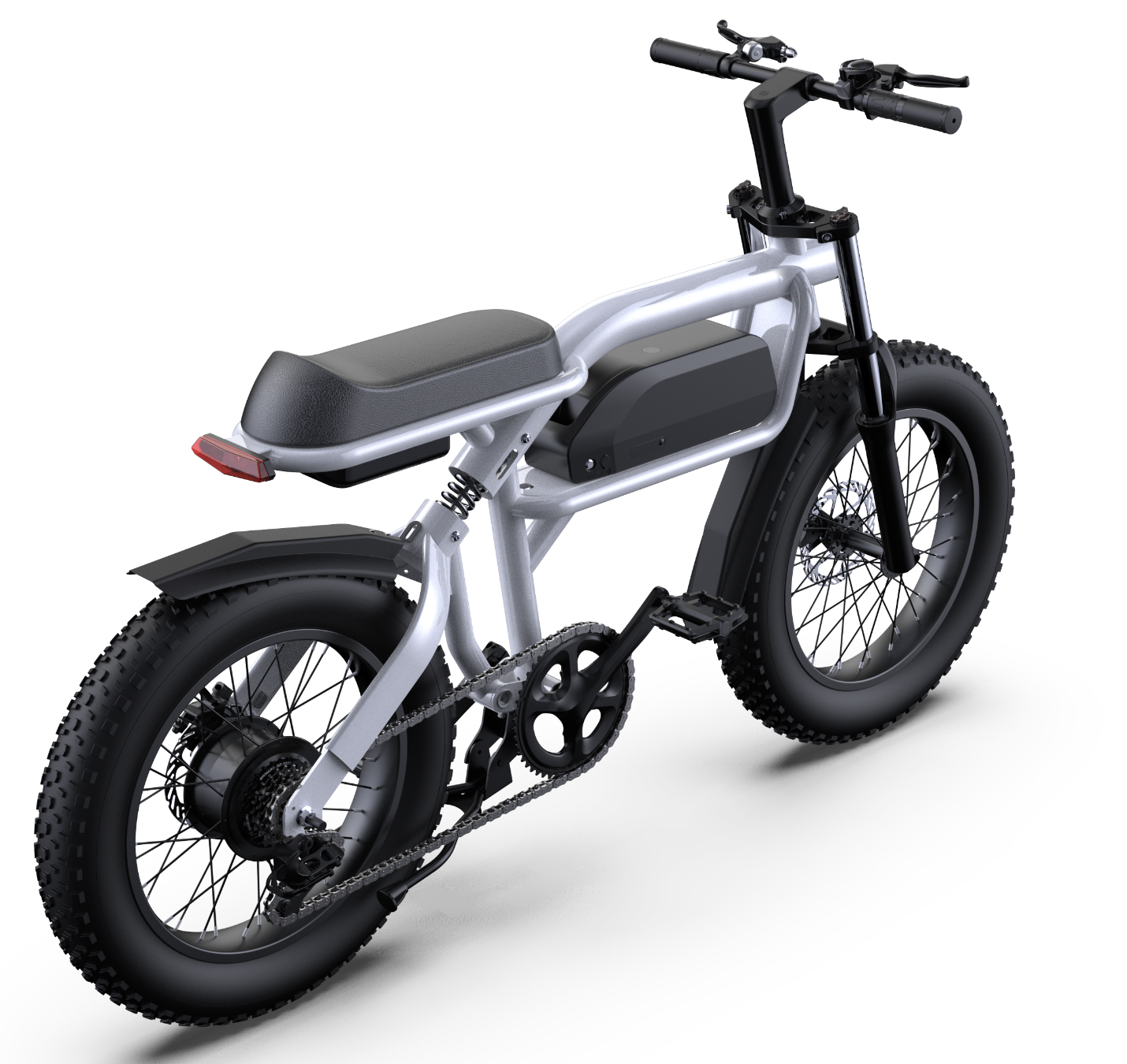

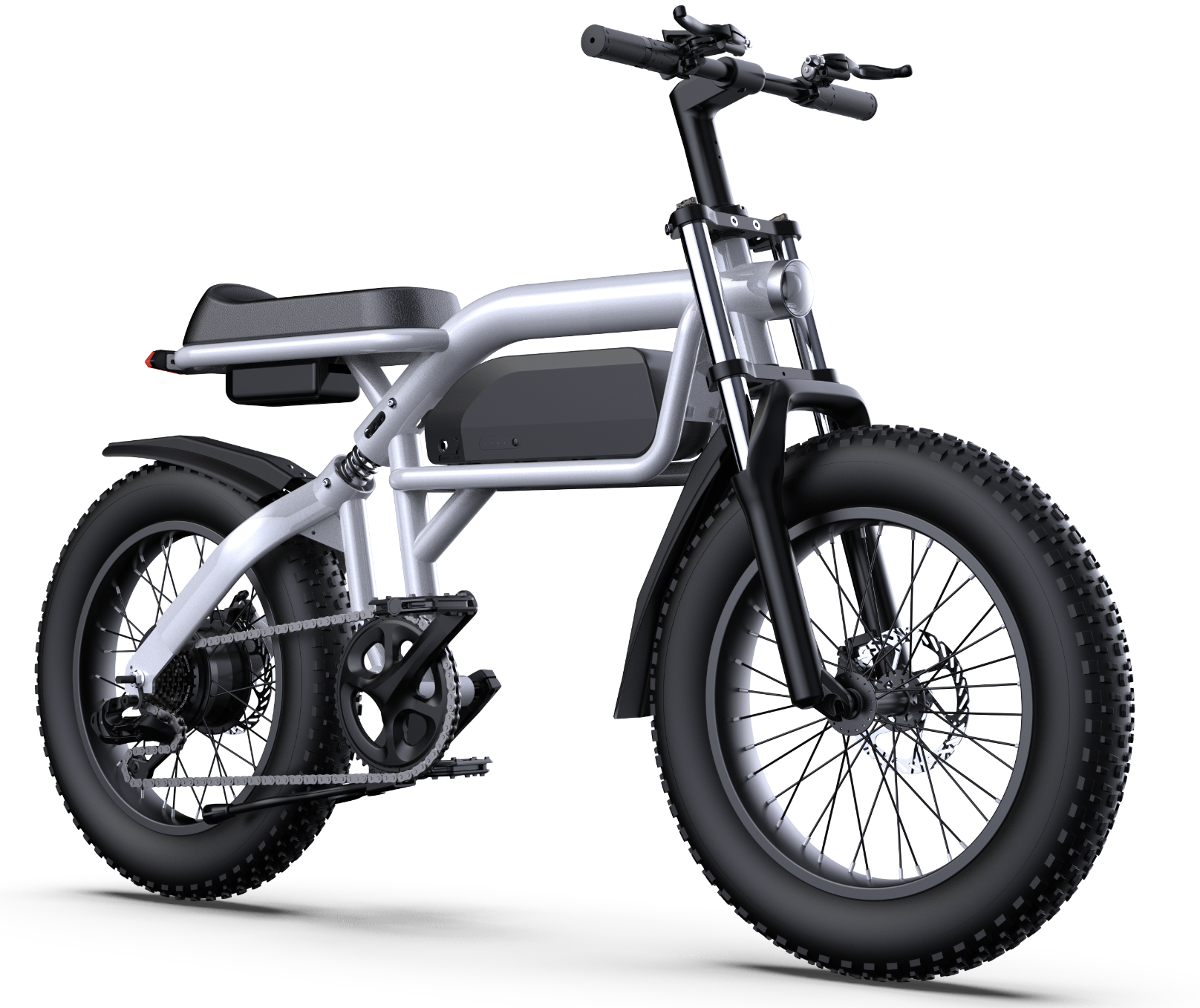

20-inch Fat-tire Electric Bike EB08 — view 1

PRODUCT GALLERY / 01

Electric Bikes

MODEL / EB08

20-inch Fat-tire Electric Bike

An aluminum 20-inch platform combining compact proportions with off-road visual character.

Frame materialAluminum

Extended size1650 × 650 × 1120 mm

Tyres20-inch front and rear wheels with rear hub motor

Motor power500W

Request configuration →Back to all products

REFERENCE CONFIGURATION

Detailed
information.

Specifications reflect the reference platform and can be adapted for target-market requirements, compliance and commercial positioning.

Frame material: Aluminum
Extended size: 1650 × 650 × 1120 mm
Tyres: 20-inch front and rear wheels with rear hub motor
Motor power: 500W
Brake system: Front and rear disc brakes
Maximum load: 150 kg
Maximum speed: 50 km/h
Tyre type: Pneumatic tyre
Headlamp: Yes
LED tail lamp: Yes
Smartphone app: Optional
Battery capacity: 48V 7.5–12.5Ah
Range per charge: 35–55 km
Charger voltage: 110–240V, 50–60Hz
Working temperature: −10°C to 40°C
Charging time: 5–7.5 hours
Net weight: 23 kg
