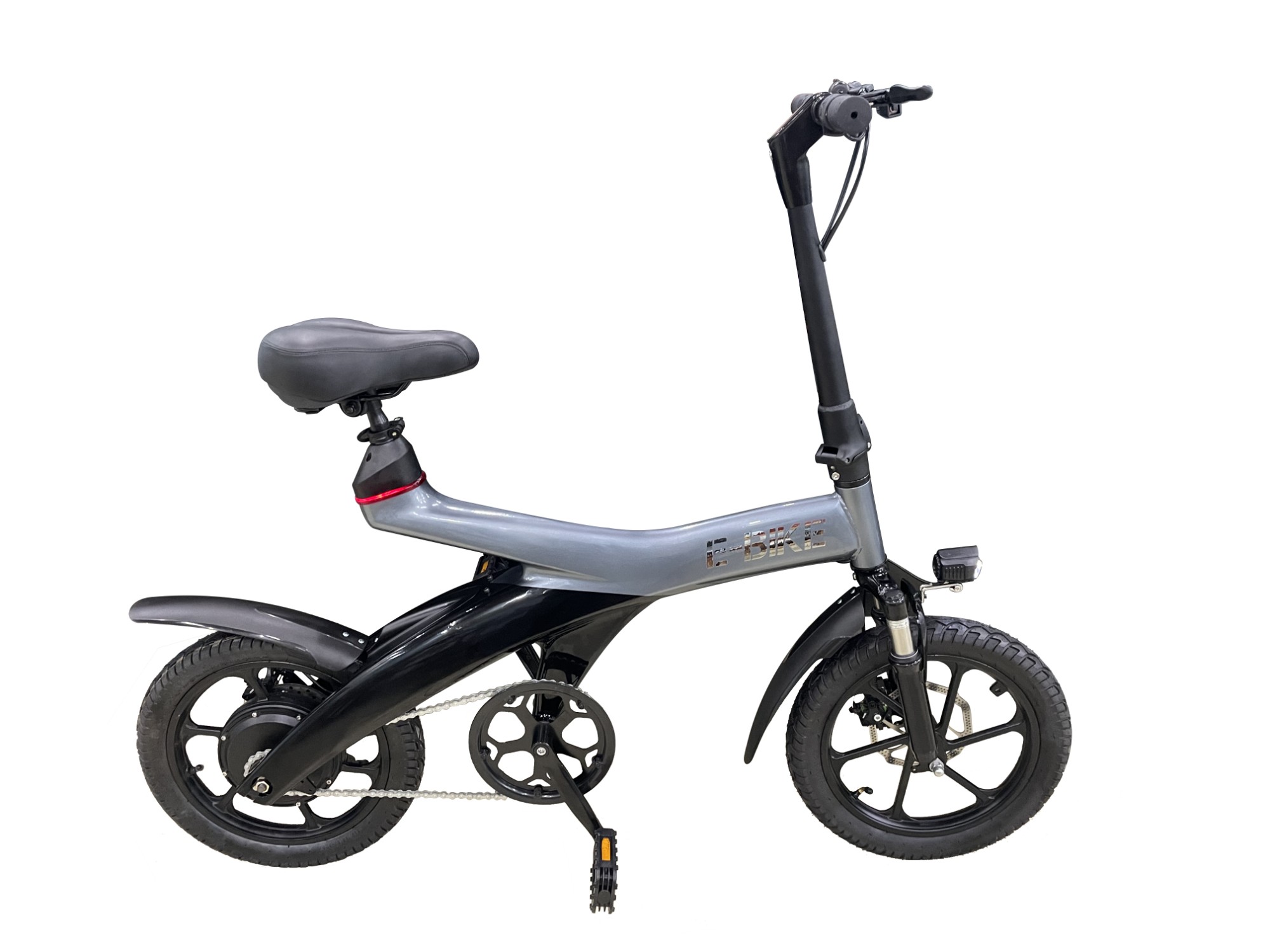

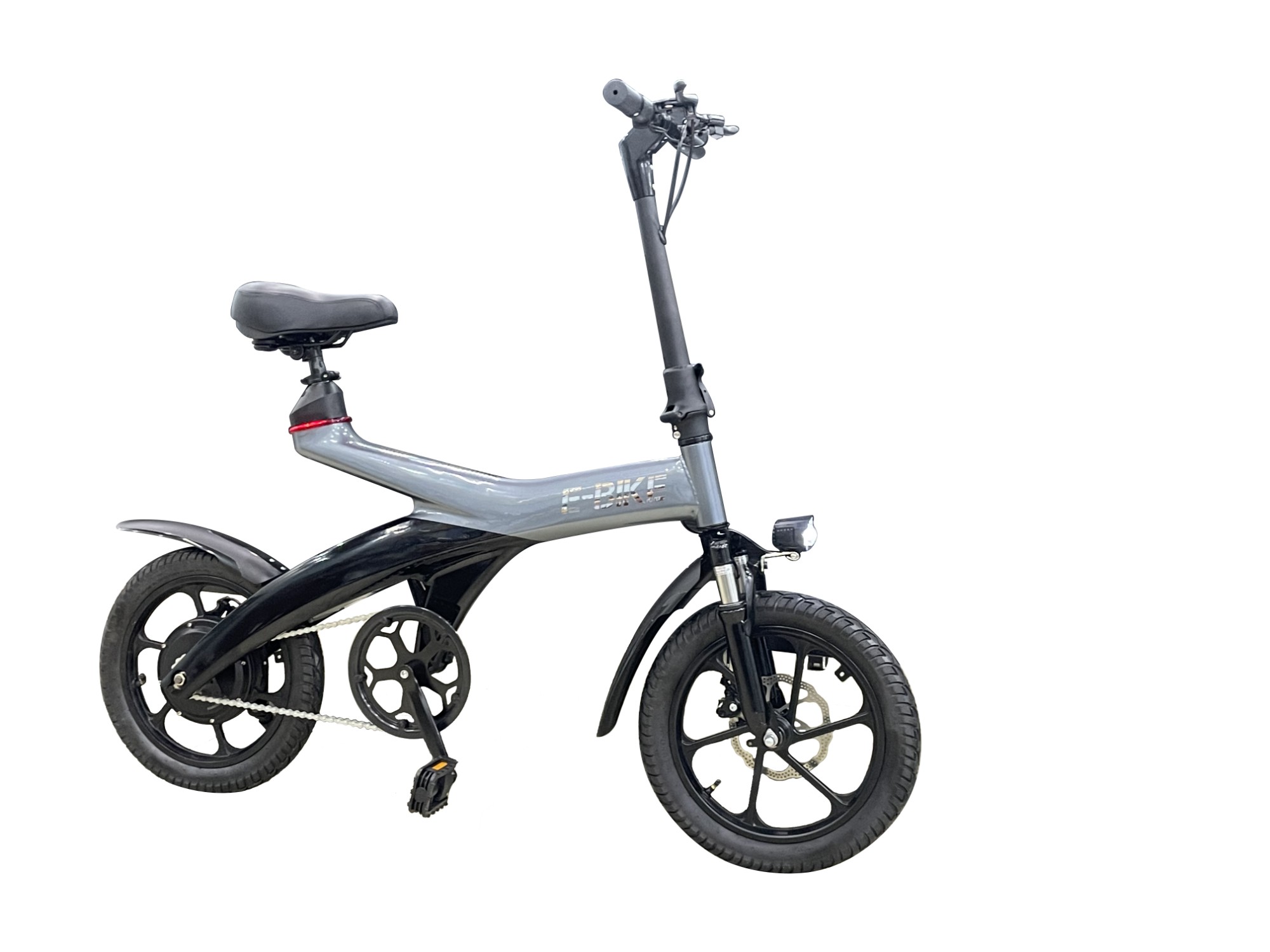

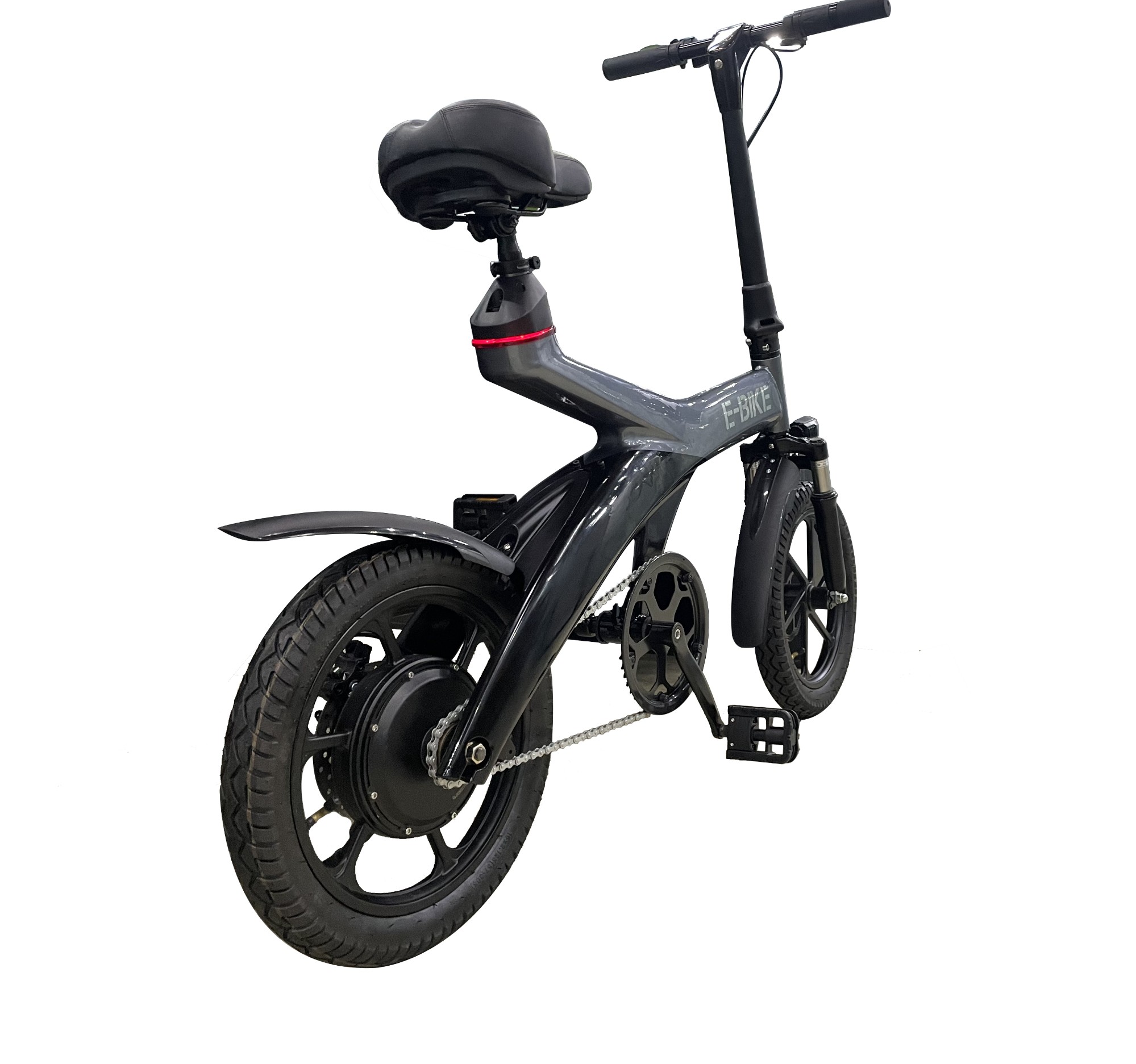

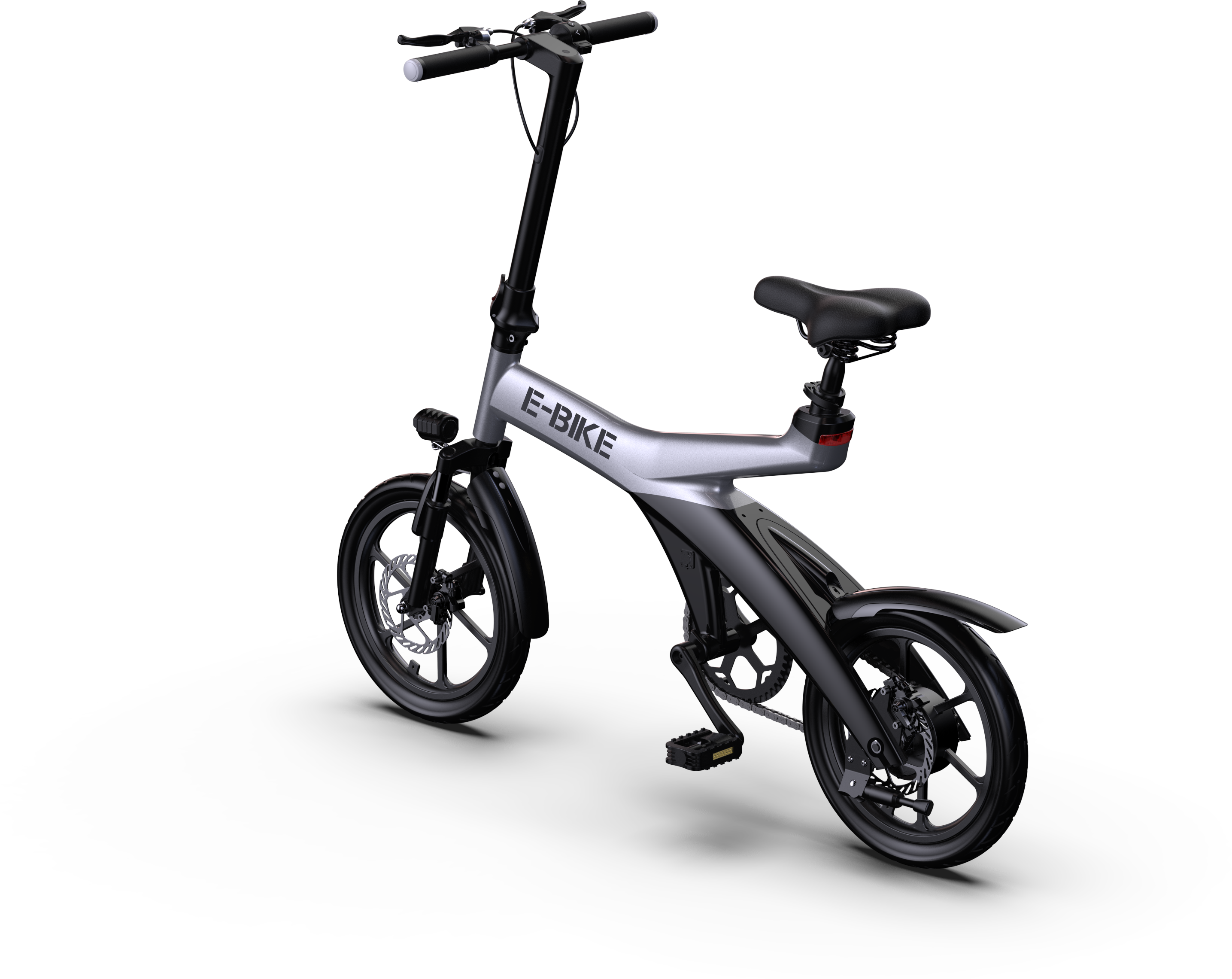

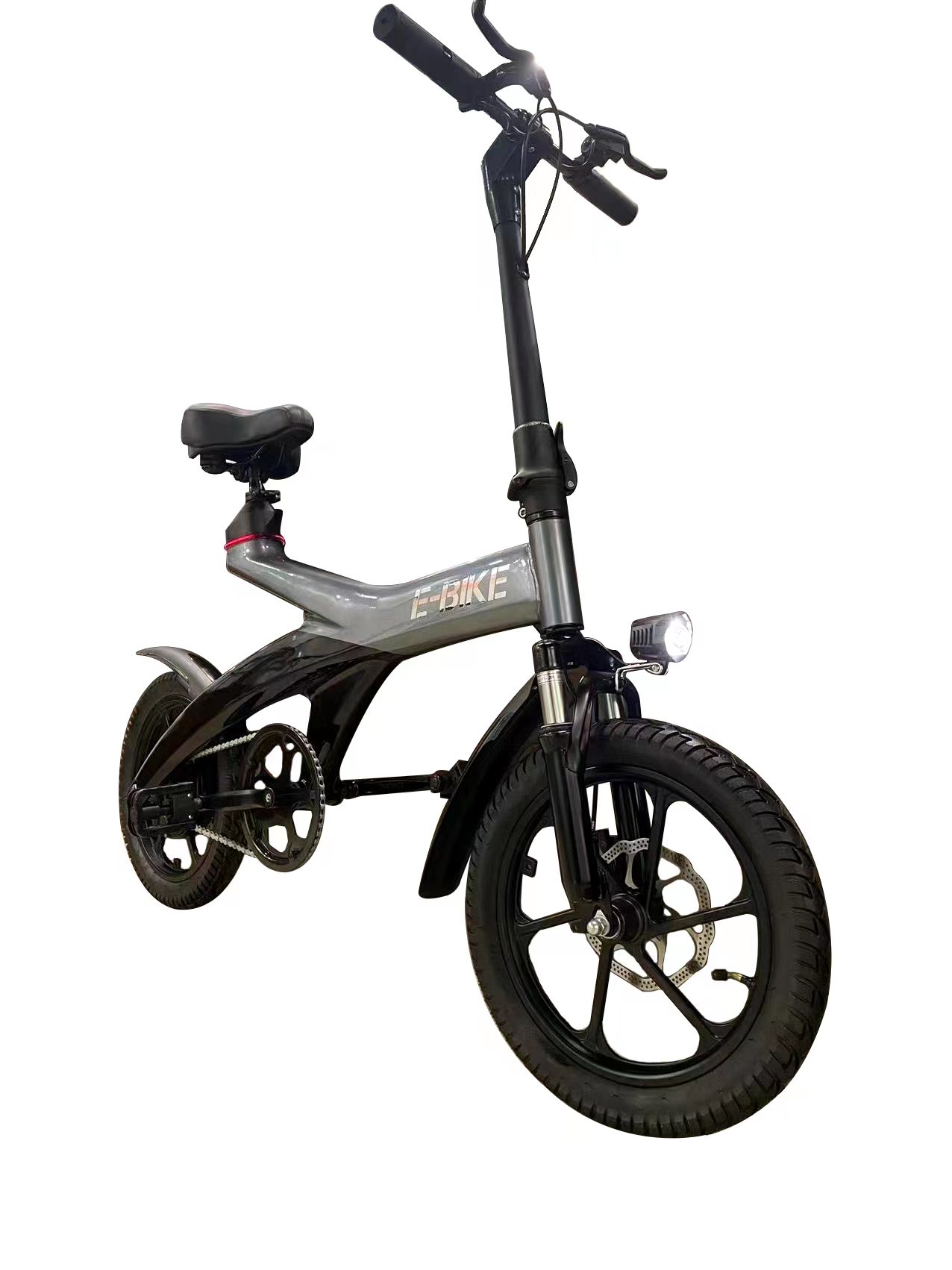

16-inch Electric Bike EB05 — view 1

PRODUCT GALLERY / 01

Electric Bikes

MODEL / EB05

16-inch Electric Bike

A versatile small-wheel electric bike platform for everyday commuting and compact storage.

Frame materialIron

Extended size1650 × 650 × 1120 mm

Tyres16-inch front and rear wheels with rear hub motor

Motor power350W

Request configuration →Back to all products

REFERENCE CONFIGURATION

Detailed
information.

Specifications reflect the reference platform and can be adapted for target-market requirements, compliance and commercial positioning.

Frame material: Iron
Extended size: 1650 × 650 × 1120 mm
Tyres: 16-inch front and rear wheels with rear hub motor
Motor power: 350W
Brake system: Front and rear disc brakes
Maximum load: 150 kg
Maximum speed: 35 km/h
Tyre type: Pneumatic tyre
Headlamp: Yes
LED tail lamp: Yes
Smartphone app: Optional
Battery capacity: 36V 7.5–12.5Ah
Range per charge: 25–45 km
Charger voltage: 110–240V, 50–60Hz
Working temperature: −10°C to 40°C
Charging time: 3–6 hours
Net weight: 20 kg
